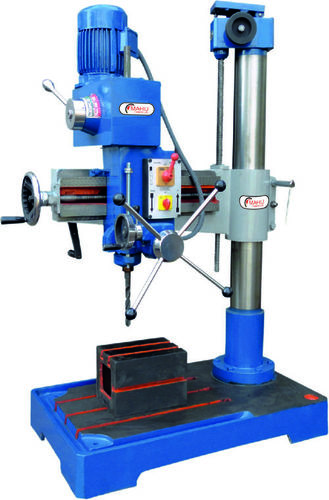

25mm semi all geared radial drill machine

25mm semi all geared radial drill machine
25mm semi all geared radial drill machine
Send Inquiry
Product Code : mahij 25 x 8 x 700
Brand Name : mahij
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • - USD ($)
Product Description

Cap. 25 MM SEMI ALL GEARED FINE FEED RADIAL DRILLING MACHINE WITH AUTO LIFTING AND ELECTRICAL.



SPECIFICATION IN MM

SR. NO.

MODEL NO:

MAHIJ 25 X 8/700

A. CAPACITY

25 MM

B. DRILLING CAP.



1.  IN MILD STEEL HAVING 300Mpa TENSILE STRENGTH

32 MM

2.  IN CAST IRON HAVING 180BHN

25 MM

C.  TAPPING CAPACITY

20 MM

D. DRILL ING HEAD



1. TAPER IN SPINDLE [MORSE TAPPER]

MT-3

2. SPINDLE TRAVELS โ€“ AUTO/MANUAL

250 MM

3. NO. OF SPINDLE SPEEDS / RANGE

8/50 โ€“ 1750 RPM

4. NO. OF AUTO FEEDS

Manual [hand feed]

E. ELECTRICAL



1. POWER SUPPLY

415 V, 3 PH, 50 Hz

2. DRILLING HEAD MOTOR

1 HP

3. ARM ELEVATING MOTOR

0.5 HP

F.  WORKING RANGE



1. DRILLING RADIUS MIN/MAX.

765 MM

2. DISTANCE BETWEEN BASE PLATES TO SPINDLE MIN/MAX.

270/900 MM

3. DRILLING HEAD TRAVERSE MAX [MANUAL]

500 MM

4. VERTICAL TRAVERSE OF ARM [AUTO]

710 MM

5. COLUMN SLEEVE DIAMETER

130 MM

6. ROTATION OF ARM [BOTH SIDE]

0-180 DEG.

G. BASE PLATE



1. WORKING SURFACE [L x W]

715 x 600 MM

2. NO. OF T โ€“ SLOTS & NOMINAL SIZE

3/16

3. WEIGHT OF MACHINE WITH ELALECTRICALS & STANDARD ACCESSORIES [APPROX] NET / CROSS

550/900 KG

H. BOX TABLE SIZE [L x W x H] MM

300 x 210 x 210





I.  WOODEN PACKING DIMENSION [L x W x H]

1200 x 630 X 1780


NOTE: ALL THE ABOVE DESIGNS, DIMENSIONS AND DETAILS ARE APPROXIMATE ONLY AND WE RESERVE THE RIGHT TO ALTER THEM WITHOUT PRIOR NOTICE AS WE ARE IMPROVING THE DESIGN.

Trade Information
  • FOB Port
  • kandala
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
