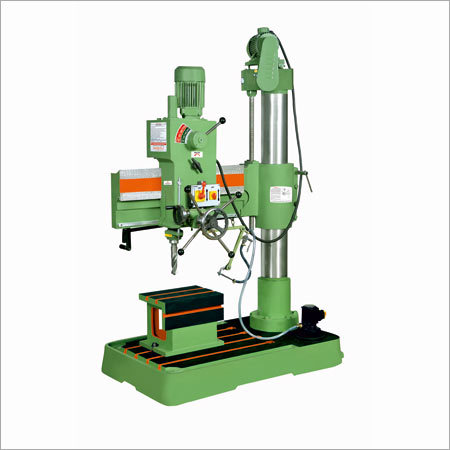

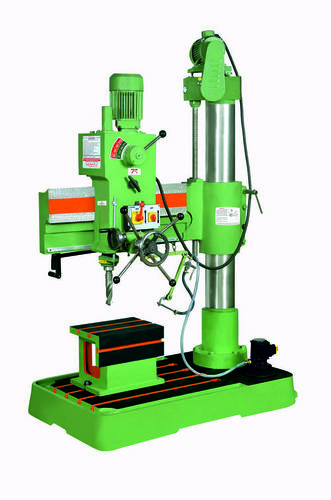

40 MM Semi All Geared Radial Drill Machine

40 MM Semi All Geared Radial Drill Machine
40 MM Semi All Geared Radial Drill Machine
Product Code : MAHIJ 40/950
Brand Name : Mahij
Trade Information
  • Unit of Measure
  • Unit/Units
  • Price Range
  • - USD ($)
  • FOB Port
  • Kandala
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Delivery Time
  • Week
  • Main Export Market(s)
  • Asia, Australia, Western Europe, Middle East, Africa, South America, Central America, Eastern Europe
  • Main Domestic Market
  • All India
Product Description

MAHIJ EXIM PVT LTD. Is large Radial Drilling Machine manufacturer and Exporters from Bhavnagar Gujarat in India. The Radial Drill Machine offered by us is widely demanded in the market due to the brilliant quality and expert performance. The materials used in the manufacturing of the all Geared Radial Drilling Machine have ensured high durability, tensile strength and resistivity to adverse conditions. Additionally, Radial Drilling Machines are loaded with all the advanced facility ensuring easy operation and high productivity.

40 mm semi all geared radial drill machine with fine feed system and electrical.

Technical Specifications

Sr. No.

Model No: Mahij 40/950

A. Capacity

40mm

B. Drilling Cap.


1. In Mild Steel Having 300mpa Tensile Strength

40 Mm

2. In Cast Iron Having 180bhn

45 Mm

C. Tapping Capacity

28 Mm

D. Boring

75 Mm

E. Drilling Head


1. Taper In Spindle [MORSE Tapper]

Mt-4

2. Spindle Travels - Auto/Manual

250 Mm

3. No. Of Spindle Speeds / Range

8/50 - 1750 Rpm

4. No. Of Auto Feeds

Manual [hand Feed]

F. Electrical


1. Power Supply

415v, 3ph, 50hz

2. Drilling Head Motor

2 Hp

3. Arm Elevating Motor

0.5 Hp

G. Working Range


1. Drilling Radius Min/Max.

480 / 1050 Mm

2. Distance Between Base Plates To Spindle Min/Max.

250/950 Mm

3. Drilling Head Traverse Max [MANUAL]

565 Mm

4. Vertical Traverse Of Arm [AUTO]

750 Mm

5. Column Sleeve Diameter

170 Mm

6. Rotation Of Arm [BOTH Side]

0-180 Deg.

H. Base Plate


1. Working Surface [L X W]

830 X 620

2. No. Of T - Slots & Nominal Size

4/21

3. Weight Of Machine With Electricals & Standard Accessories [APPROX] Net / Cross

850/1000 Kg

I. Box Table Size [L X W X H] Mm

400 X 300 X 300

J. Wooden Packing Dimension [L X W X H]

1425 X 850 X2100

Note: All the above designs, dimensions and details are approximate only and we reserve the right to alter them without prior notice as we are improving the design.
