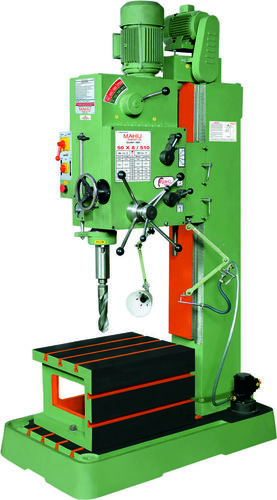

Box Column Drilling Machine MAHIJ 50X8/510
SPECIFICATION: All dimensions are in mm
- Drilling capacity in Mild steel 50
- Drilling capacity in cast iron 60
- Tapping capacity in steel: M 35
- Tapping capacity in cast iron M 42
- Boring Capacity 110
- Morse taper in spindle MT 5
- Spindle traverse on vertical 300
- Vertical adjustment of spindle head [traverse] 750
- Distance between spindle and upright 510
- Number of spindle speeds 8
- Range of spindle speeds (rpm) 50-1600 RPM
- Number of power feeds 4
- Range of feeds (mm/rev) 0.10 - 0.25
- Power of main motor [two speed] 3 HP, 415V AC, 3 PH 50 Hz
- Power of elevating motor 1 HP, 1400 rpm, 415V AC, 3 Ph 50 Hz
- Base Size 1250 X 750 x 160
- Working surface 840 X 750
- Distance between base plate to spindle max./min. 970/100
- No. of T Slots 4
- Width of T Slots 16
- Distance between T slots 100
- Box table size [L x W x H] 600 X 500 X 370
- V- Belt Section of Elevator [lifting] A-25/A-26
- Approxly Overall size [L X W x H] 1300 X 800 X 2400
- Approx Weight 1800 Kg
- WOODEN PACKING DEMENSION [L x W x H] 1350 x 850 x 2500
Electrical consisting of two motors, contractors, limit switches, control transformers, wiring Etc.
Optional Accessories: (At Extra Price)
Coolant Pump with Fitting
Drill Chuck with key & arbor
Foundation Bolt & Service Tool
Wooden Box Packing & Forwarding
Note: All the above designs, dimensions and details are approximate only and we reserve the right to alter them without prior notice as we are improving the design.
The Entire Feature in the Machine:
- Main Spindle is made of material.
- MT-bore -internally grinded.
- Provided 4-8 Speeds by accurate balancing.
- Spindle sleeve-grinded.
- By simple adjustment of only tapper wedge facility to set drill head on column guide way.
- Work light [As per requirement]
- Box work table [As per requirement]
- Auto Feed [4/0.10 TO 0.25mm]
- coolant system [As per requirement]
- Adjustable depth control [with auto stop]
- Nitride hardened spindle
- Ram is accurately grinded and Honing process is done in the bore body
- Containing ram.
- All the gears assemble in the machine are perfectly sized according to
- Requirement [Precision gears]
- All Bearing [SKF & NBC Bearing]
- All Electrical parts are good quality. [Company: L&T]
- Pinion and worm is grinded as per the sizes required
- Square column design and
- Precision ground alloy gears
- Spindle reverse and tapping control
- Specially spring type balanced spindle travel
- Emergency stop button
- Auto /Manual feed options
- Drilling last capacity. : 2 inch
- Heavy Duty structures
- Strongly ribbed and thick walled base plate having built-in coolant tank.
- Size of T-slots: 4/16MM
- Wooden case available on demand
