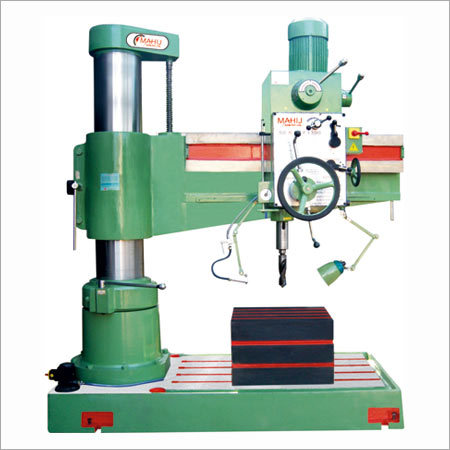

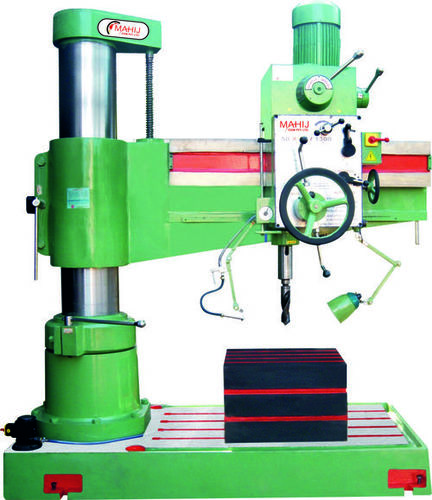

50mm Heavy Duty All Geared Radial Drill Machine

SR. NO.

MODEL NO:

MAHIJ 50 X 16 / 1300

A. CAPACITY

50 / 52 MM

B. DRILLING CAP.

1.  IN MILD STEEL HAVING 200Mpa TENSILE STRENGTH

50 MM

2.  IN CAST IRON HAVING 180BHN

60 MM

C.  TAPPING CAPACITY

32 MM

D. DRILL ING HEAD

1. TAPER IN SPINDLE [MORSE TAPPER]

MT- 5

2. SPINDLE TRAVELS – AUTO/MANUAL

325 MM

3. NO. OF SPINDLE SPEEDS / RANGE

16/40- 2300 RPM

4. NO. OF AUTO FEEDS

 4/0.10 – 0.25

E. ELECTRICAL

1. POWER SUPPLY

415V, 3PH, 50Hz

2. DRILLING HEAD MOTOR

5 HP

3. ARM ELEVATING MOTOR

2 HP

F.  WORKING RANGE

1. DRILLING RADIUS MIN/MAX.

500 / 1450 MM

2. DISTANCE BETWEEN BASE PLATES TO SPINDLE MIN/MAX.

395/1300 MM

3. DRILLING HEAD TRAVERSE MAX [MANUAL]

950 MM

4. VERTICAL TRAVERSE OF ARM [AUTO]

750 MM

5. COLUMN SLEEVE DIAMETER

300 MM

6. ROTATION OF ARM [BOTH SIDE]

0-180 DEG.

G. BASE PLATE

1. WORKING SURFACE [L x W]

1300 x 800

2. NO. OF T – SLOTS & NOMINAL SIZE

4/22

3. WEIGHT OF MACHINE WITH ELELECTRICALS & STANDARD ACCESSORIES [APPROX] NET / CROSS

3200/3800 KG

H. BOX TABLE SIZE [L x W x H] MM

600X500X380

I.  WOODEN PACKING DIMENSION [L x W x H]

2300 x 1000 x 2450
